Blue Sea Systems M2 Vessel Systems Monitor (VSM) — Overview

Blue Sea Systems continues to advance practical marine electronics with the launch of the M2 Vessel Systems Monitor. Designed for boats with growing amounts of onboard technology, the M2 VSM consolidates critical monitoring functions into a single, compact module. “With so much technology on boats today, it is critical to keep track of all of the different systems,” said Justin Kaufman, Product Manager for Blue Sea Systems. “The M2 Vessel Systems Monitor simplifies monitoring by allowing the boater to keep track of several key functions from a single location.”

Compact OLED Display and Network Integration

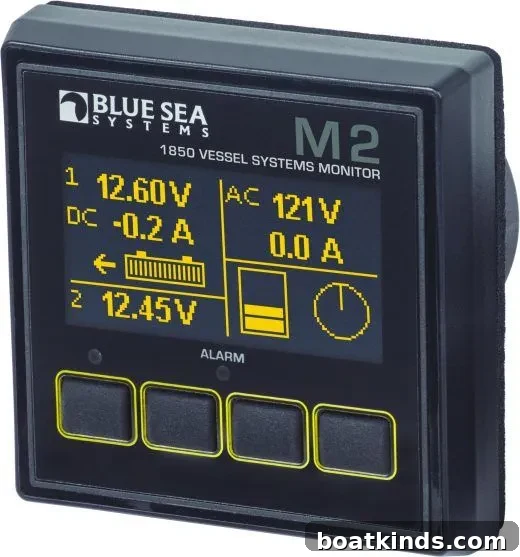

The M2 VSM features a bright, high-contrast OLED display that remains readable in daylight and through polarized lenses. The device is engineered to be NMEA 2000 compatible, with certification pending, allowing the monitor to broadcast data to multifunction displays (MFDs) and other devices on the NMEA 2000 network. This networked capability ensures that boat owners can view essential information from the central module or from any compatible display already installed aboard.

What the M2 VSM Monitors

The M2 VSM provides comprehensive oversight of four primary systems aboard a vessel: the DC system, the AC system, bilge activity, and tank levels. Each area includes configurable inputs, clear readouts, and alarm options that help boaters spot issues early and respond promptly.

DC System Monitoring

The monitor offers dedicated inputs for the DC system that track voltage, state of charge, and current for a primary battery bank, with an additional input available to monitor the voltage of a secondary battery bank. The VSM issues audible and visual alarms for high and low voltage conditions, high current draw, and low battery state of charge. These features help protect battery health and provide early warnings of electrical faults that could affect boat systems or propulsion.

AC System Monitoring

For AC power, the M2 VSM monitors a single AC source, measuring voltage, current, and frequency. Alarm thresholds include high and low voltage, excessive current, and abnormal frequency (both high and low). This coverage helps ensure that shore power, generators, or inverters are operating within safe limits and alerts the crew to potential power quality issues before they lead to equipment damage.

Bilge and Tank Monitoring

The M2 VSM includes two multi-purpose inputs that can be configured either as bilge monitors or as tank sensors. When configured for bilge monitoring, the module detects pump activity, counts pump cycles, calculates average cycle frequency, and records total cycles. Alarms can be configured to trigger on excessive run times or an unusually high number of cycles, which can indicate persistent leaks or other problems.

When set up as tank monitors, the inputs report tank levels either as capacity units or as a percentage of full. The system supports calibration for non-standard tank shapes and allows users to program custom tank profiles. High and low-level alarms can be set for each tank to provide timely alerts for fuel, water, waste, or other monitored liquids.

Installation, Integration, and Practical Benefits

The M2 VSM is designed for straightforward integration into existing boat electrical systems and NMEA 2000 networks. Its compact size and clear display make it well-suited for helm consoles, electrical lockers, or other convenient locations. By consolidating multiple monitoring functions into a single module, the VSM reduces panel clutter, simplifies wiring, and centralizes alarm management.

For boat owners and captains, benefits include faster diagnosis of electrical and plumbing issues, improved battery and power management, and greater situational awareness of bilge and tank conditions. The ability to share data across a vessel’s NMEA 2000 network also supports redundancy and flexible display options, enabling crews to view critical information on whatever screen is most convenient.

Availability

The M2 Vessel Systems Monitor is offered through marine retailers and distributors. It represents Blue Sea Systems’ continued focus on practical, user-friendly products that address the needs of modern boaters who rely on integrated electronics and networked systems for safety, comfort, and convenience.

Note: The VSM is intended to monitor and report system parameters and alarms; users should follow manufacturer installation instructions and verify configuration and alarm settings to match their specific vessel systems and safety requirements.
