A boat rudder is a flat or curved piece of material, usually made of metal, wood, or composite materials, attached to the stern (rear) of a boat or ship to control its direction of movement.
The rudder can be turned left or right using a steering mechanism, such as a tiller or a wheel, and its movement redirects the flow of water passing over the boat’s hull, causing the boat to turn in the desired direction.
The size and shape of a rudder can vary depending on the size and type of boat or ship it is installed on, as well as the intended use of the vessel.
Smaller boats may have a single, smaller rudder, while larger vessels may have multiple rudders or a more extensive, more complex rudder system.
Additionally, some boats, such as sailboats, may have a retractable or removable rudder to minimize drag when sailing.
Boat Rudder – Definition and History
The history of the boat rudder dates back to ancient times when boats were first developed for transportation and trade.
The earliest rudders were simple oars or paddles that were used to steer the boat by dragging them through the water. Later, larger boats and ships required a more efficient method of steering, and the rudder was developed.
The first known depiction of a rudder comes from a Han dynasty tomb model in China, dated to the 1st century AD.
This early rudder was made of wood and was attached to the hull by a yoke, which allowed the rudder to pivot from side to side.
Over time, the design of the rudder evolved, with improvements in materials and technology leading to more efficient and effective steering systems.
In the Middle Ages, European ships began using a sternpost rudder, which was mounted on the sternpost and allowed for more precise steering control.
By the 19th century, iron and steel were being used to make rudders, which were stronger and more durable than their wooden predecessors.
Today, boats and ships of all sizes use a variety of rudder designs and materials, ranging from small fiberglass rudders on recreational sailboats to massive steel rudders on ocean-going cargo ships.
The basic principles of the rudder remain the same, however, providing boats and ships with the ability to navigate and maneuver through the water.
How Rudders Work Types Of Rudders And Their Advantages
Rudders work by redirecting the flow of water passing over a boat’s hull, creating a force that turns the boat in the desired direction.
When the rudder is turned, it creates a pressure differential on either side of the rudder, which causes the water to flow around the rudder and deflects the water in the opposite direction, thus changing the direction of the boat.

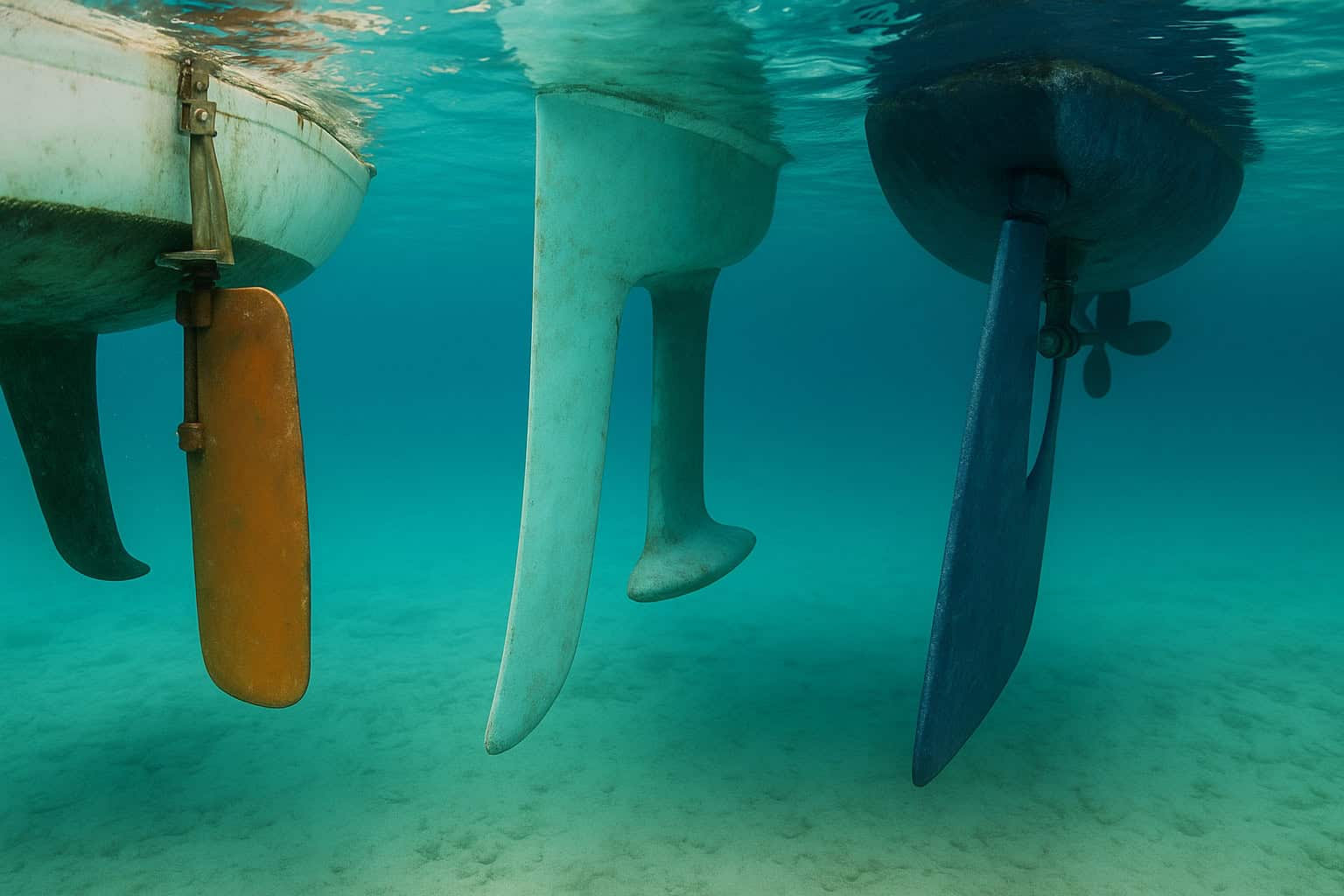

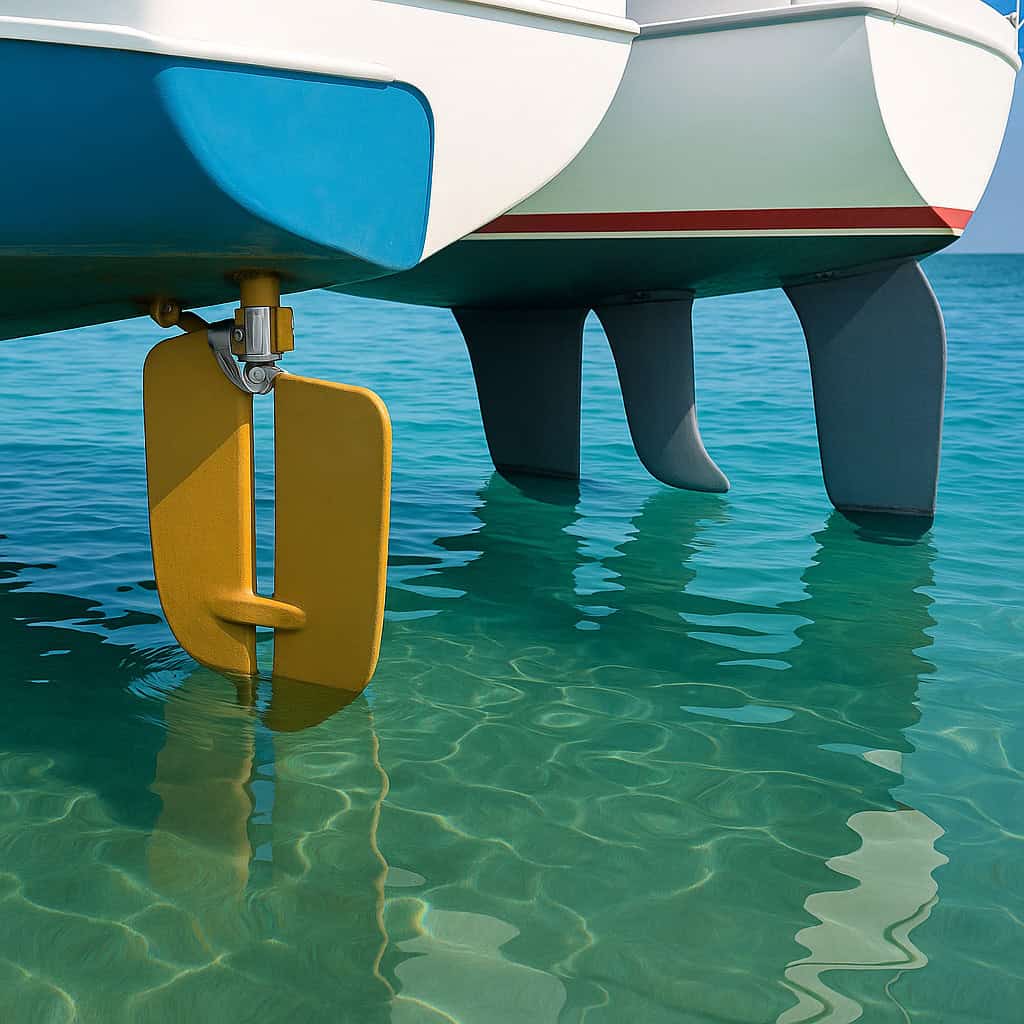

There are several types of rudders used on boats and ships, each with its advantages and disadvantages:
1-Balanced Rudder
A balanced rudder is a type of rudder used on boats and ships that are designed to reduce the force required to turn the rudder and improve steering efficiency.
A balanced rudder has a smaller surface area, which reduces the amount of water resistance and drag created by the rudder, making it easier to turn.
The balance of the rudder is achieved by using a counterweight or a smaller rudder at the front of the main rudder. The counterweight or front rudder offsets the force created by the pressure differential on the main rudder, making it easier to turn.
Balanced rudders are commonly used on sailing vessels, where precise steering control is important. They can also be found on powerboats and larger ships, where they provide improved maneuverability and reduced drag.
One of the main advantages of a balanced rudder is that it requires less force to turn than a conventional rudder, which reduces the amount of energy required to steer the vessel. This can result in improved fuel efficiency and reduced operating costs.
Additionally, the smaller size of the rudder can make it less effective in high winds or rough seas.
2-Unbalanced Rudder
An unbalanced rudder is a type of rudder used on boats and ships that do not have a counterweight or a smaller rudder to offset the force created by the pressure differential on the rudder.
Unbalanced rudders are simpler in design and less expensive to manufacture than balanced rudders, but require more force to turn and are less efficient.
Unbalanced rudders have a larger surface area than balanced rudders, which creates more water resistance and drag when turning. This can make the boat more difficult to steer and can reduce the overall speed and efficiency of the vessel.
Unbalanced rudders are commonly used on smaller boats and recreational vessels, where the reduced manufacturing costs and simplicity of design are important factors.
However, larger vessels such as commercial ships and military vessels typically use balanced rudders or other more advanced steering systems to provide greater maneuverability and control.
Overall, unbalanced rudders have the advantage of being less complex and less expensive than other types of rudders, but their larger size and greater resistance can make them less efficient and more difficult to control.
Proper maintenance and care of the rudder are important to ensure it operates effectively and safely.
3-Semi-Balanced Rudder
A semi-balanced rudder is a type of rudder used on boats and ships that combines features of both balanced and unbalanced rudders.
Semi-balanced rudders have a smaller surface area than unbalanced rudders, which reduces the amount of water resistance and drag created by the rudder, making it easier to turn.
However, unlike unbalanced rudders, semi-balanced rudders have a small counterweight or a smaller rudder at the front to partially offset the force created by the pressure differential on the main rudder.
Semi-balanced rudders are commonly used on smaller to medium-sized boats and ships, where maneuverability and ease of use are important factors, but the cost is also a concern.
The smaller size of the rudder allows for improved efficiency and reduced drag, while the partial balance provided by the counterweight or smaller rudder at the front makes it easier to turn than an unbalanced rudder.
Semi-balanced rudders can provide a good balance between efficiency and ease of use, but they may not be as effective in extreme conditions as fully-balanced rudders. They also require proper maintenance and care to ensure that they operate effectively and safely.
4-Skeg-Mounted Rudder
A skeg-mounted rudder is a type of rudder used on boats and ships that are attached to a vertical structure, called a skeg, which extends from the bottom of the boat’s hull. The skeg provides support and stability for the rudder and helps to protect it from damage.
Skeg-mounted rudders are commonly used on larger boats and ships, such as commercial vessels and yachts. They are typically mounted near the stern of the boat, and the skeg extends downward from the hull to provide additional support for the rudder.
This design allows for greater maneuverability and control, particularly in rough or choppy waters.
One of the main advantages of a skeg-mounted rudder is its ability to provide a stable and secure attachment for the rudder, which can reduce the risk of damage or failure. Additionally, the skeg can help to protect the propeller and other underwater components from damage.
However, the additional structure required for a skeg-mounted rudder can increase the weight and complexity of the boat, which can affect performance and efficiency.
Skeg-mounted rudders can also be more difficult to repair or replace than other types of rudders, particularly if damage occurs to the skeg itself.
5-Transom or Outboard Rudder
A transom or outboard rudder is a type of rudder used on boats where the rudder is mounted on the transom or the exterior of the hull, rather than being attached to a skeg or other support structure.
Transom or outboard rudders are commonly used on small boats, such as sailboats and motorboats, and are particularly common on boats with outboard motors.
The main advantage of a transom or outboard rudder is that it is relatively simple and inexpensive to install and maintain. This type of rudder can also provide good maneuverability and responsiveness, particularly at lower speeds.
However, transom or outboard rudders can be less effective at higher speeds, as they can create more drag and turbulence.
They may also be more susceptible to damage from impact with objects in the water and may require more frequent maintenance and replacement than other types of rudders.
6-Flaps Rudder
Boats also have flaps and rudders, but they work slightly differently from those on aircraft.
Boat flaps, also known as trim tabs, are small hinged surfaces attached to the stern of a boat that can be adjusted up or down to change the angle of the boat’s hull in the water.
By changing the angle of the hull, the boat can be made to ride higher or lower in the water, which can improve stability, reduce drag, and improve fuel efficiency. Boat flaps are typically used to adjust the boat’s trim while underway, especially in rough water or when carrying a heavy load.
The rudder on a boat is a hinged surface attached to the stern that can be turned left or right to steer the boat.
Unlike aircraft rudders, boat rudders are not used to control yaw or side-to-side movement, but rather to turn the boat left or right. The size and shape of the rudder affect the boat’s turning ability, and some boats have more than one rudder to improve maneuverability.
In summary, boat flaps and rudders are used to adjust the boat’s trim and steer the boat, respectively, and work differently from their counterparts on aircraft.
7-Spade Rudder
A spade rudder is a type of boat rudder that is designed with a single blade that is attached to the hull of the boat. The term “spade” refers to the shape of the rudder, which is narrow and tapered like a spade or shovel.
Compared to other types of rudders, such as skeg-mounted or transom-mounted rudders, a spade rudder offers several advantages.
Because it is mounted on the hull rather than the keel or transom, a spade rudder can be positioned farther aft and closer to the propeller, which can improve the boat’s maneuverability and reduce the turning radius.
Additionally, a spade rudder is typically lighter and more responsive than other types of rudders, which can make it easier to control the boat in a variety of conditions.
However, there are also some potential drawbacks to spade rudders. Because they are mounted directly to the hull, they can be vulnerable to damage from impacts or groundings.
Additionally, they may require more maintenance than other types of rudders due to their complex design and construction.
8-Twin Rudders
Boats with twin rudders have two separate rudders mounted on the stern of the boat, usually one on each side of the keel. This arrangement offers several advantages over a single rudder configuration.
One of the primary benefits of twin rudders is improved maneuverability. Because each rudder can be angled independently, the boat can be steered more precisely and with greater responsiveness, making it easier to navigate in tight spaces or rough water.
Additionally, twin rudders can provide greater stability and control when the boat is heeled over or sailing at high speeds.
Another advantage of twin rudders is redundancy. If one rudder becomes damaged or fails, the boat can still be steered using the other rudder, which can be a critical safety feature in emergencies.
However, there are also some potential drawbacks to twin rudder configurations. They can be more complex and expensive to design and install than a single rudder and may require additional maintenance to keep both rudders operating smoothly.
Additionally, twin rudders can create more drag than a single rudder, which can reduce the boat’s speed and fuel efficiency.
However, they may not be necessary or practical for all types of boats and applications.
How Does a Rudder Work?
A rudder is a hinged surface located at the stern (rear) of a boat that is used to control the direction of the boat. When the rudder is turned to one side, the force of the water flowing past it creates a turning moment that causes the boat to turn in the opposite direction.
The principle behind how a rudder works are based on the Bernoulli principle, which states that as the speed of a fluid (such as water) increases, its pressure decreases.
When the boat is moving forward, water flows past the rudder at a higher speed on one side than the other.
This creates a pressure differential, with higher pressure on the side where the water is flowing more slowly and lower pressure on the side where the water is flowing more quickly. The resulting force on the rudder creates a turning moment that causes the boat to turn.
To turn the boat to the left, the rudder is turned to the right, creating a higher pressure on the right side of the rudder and a lower pressure on the left side, which turns the boat to the left.
Conversely, turning the rudder to the left creates a higher pressure on the left side of the rudder and a lower pressure on the right side, which turns the boat to the right.
The size and shape of the rudder, as well as the speed and direction of the water flow, all affect the turning ability and responsiveness of the boat.
Additionally, other factors such as wind, currents, and the boat’s weight and balance can also influence how a rudder works and how effectively it can steer the boat.
Conclusion
The advantages of rudders include improved steering and maneuverability, greater control over the direction and speed of the boat, and increased safety and stability.
However, rudders can also create drag and resistance, which can reduce the boat’s speed and efficiency, particularly in light winds or calm waters. Proper maintenance and care of the rudder are important to ensure it operates effectively and safely.
