Understanding Water Depth: Charts, Tides, and Practical Navigation

As kids we used to ask my father, “How deep is it here?” He would look us straight in the eye and give the same sardonic answer: “All the way to the bottom!” That joke still rings true—water depth sounds simple, but there’s more beneath the surface. Knowing actual depth and how to avoid submerged hazards is essential for safe navigation.

Charted depths and what your depth sounder reads are not always the same. Chart soundings are typically measured during hydrographic surveys and often referenced to a chart datum such as mean lower low water (MLLW). That means actual depth will vary with tides: at low tide depths can be less than charted, and at high tide they’ll be greater. In addition, the moon’s phases, wind, atmospheric pressure and seasonal cycles all influence water level and therefore true depth.

Charts use soundings and contour lines to give a broad picture of the seabed, but those data are snapshots taken at a particular time. Storms and currents move sandbars, mouths of rivers and inlets change, and new wrecks or obstructions can appear. Temporary buoys may warn of hazards before official chart updates appear. For this reason keep charts and plotter chips up to date, be mindful of chart datum and units (feet versus fathoms), and cross-check charted soundings against your depth sounder whenever possible.

Tidal variation is a major factor in interpreting chart depths. Spring tides—occurring at new and full moons—produce higher highs and lower lows, while neap tides at the first and third quarter moon reduce the tidal range by roughly 20 percent. Equinoxes and certain lunar alignments can amplify these effects; for example, historic storm surges have been worse when storms coincided with high tide and a full moon. Even normal weather events shift sand and reshape channels, so don’t assume charts are immutable.

Shoaling is common in inlets, river bends and near shorelines. Vegetation such as mangroves can trap sediment and rapidly alter the shoreline. In little-explored or rarely surveyed areas I’ve even found islands and shoals not shown on navigation charts. That’s why keeping a vigilant lookout and reading local conditions matters as much as relying on electronic aids.

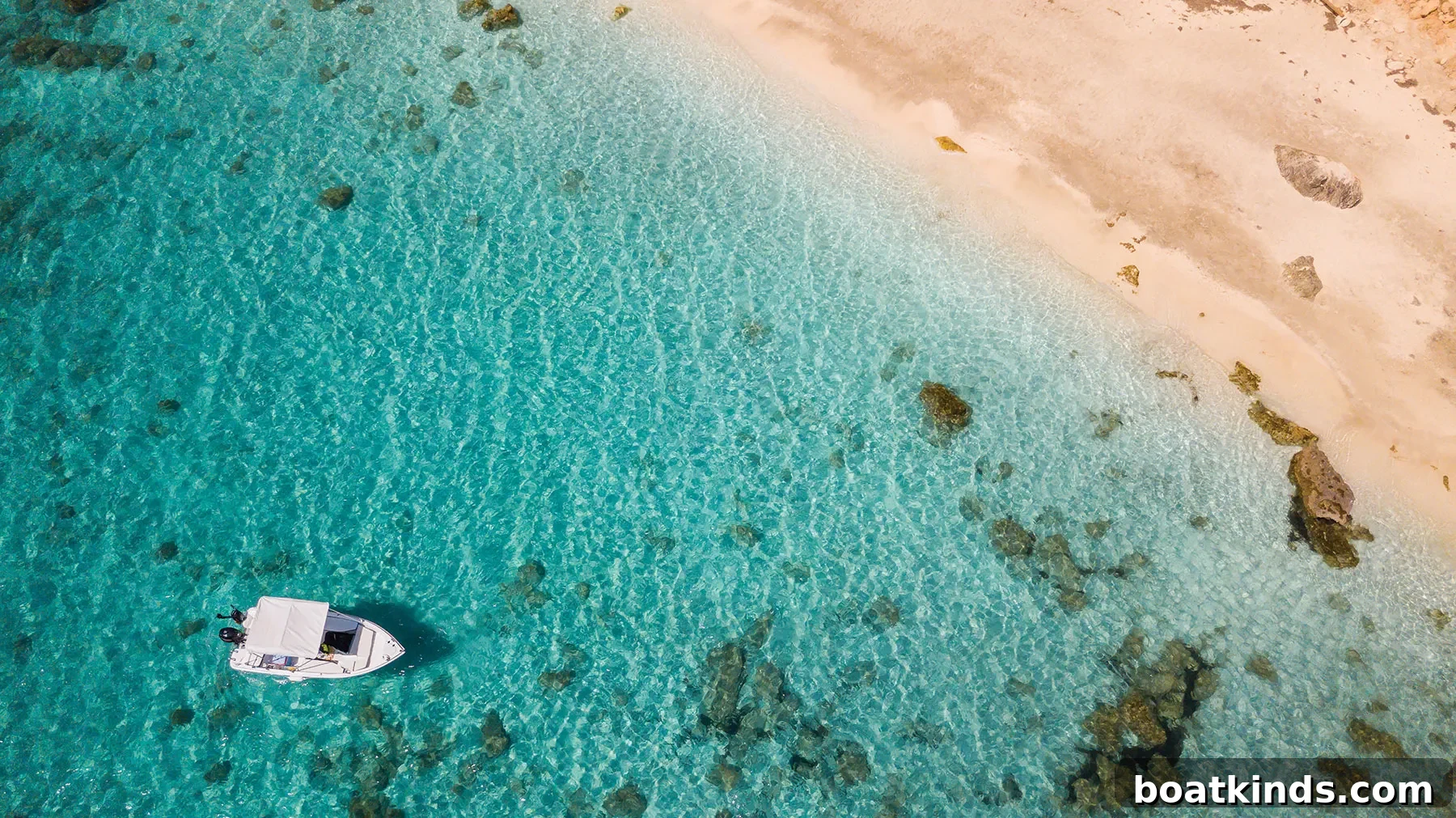

Sailors have long learned to read the water visually and by feel. In very clear waters, such as in parts of the Bahamas, you can often “read the bottom”—distinguishing sand, grass and coral by color and selecting the deepest route. Where the bottom isn’t visible, surface clues can reveal changing depths: still water often indicates deeper areas, while broken, turbulent or rippled water can mark the edge of a shelf or sandbar. Rips form where current meets rising bottom and are a useful warning.

Sometimes vegetation gives the first sign—tips of seaweed, eelgrass beds or floating debris indicate shallow ground nearby. Years ago my husband and I cruised an engineless 28-foot ketch and learned these lessons by necessity. Without a depth sounder, we relied on sight, feel and teamwork to tack through narrow inlets. On one passage my husband lay on the foredeck watching for eelgrass and shouted, “Tack now!” just in time.

On powerboats you can often feel shallow water before instruments alarm: a subtle quaver, a change in speed, or a different wake. This “squat” happens as water compresses under the hull and the boat settles lower, and it’s a reliable tactile warning to slow down or change course. I once returned to the mainland on a small freight boat at the Amazon mouth and told no one, “We’re smelling the bottom.” Within minutes we ran hard aground on a sandy table and had to wait for the tide to lift us free—an unforgettable lesson in trusting your senses.

Anchoring and mooring require extra caution. Even after applying tidal corrections, unexpected local currents or isolated shoals can leave you sitting on the bottom at low tide or pounding on an unseen obstruction. I’ve woken in the night with my boat grounded at low water. A new neighbor once set a stout mooring without local knowledge of wind-driven tidal effects; a prolonged northwest blow lowered the cove enough that his boat began pounding on the bottom well before predicted low tide—he had to move his mooring.

Depth sounders themselves need correction. Charted depth is measured from the water surface to the bottom, but your transducer may be mounted several inches or feet below your waterline—especially on deep-draft sailboats. Calibrating the sounder and applying the proper offset eliminates measurement error and avoids dangerous surprises.

Air draft—the clearance between the water and overhead structures—also deserves attention. Bridges, power lines and other fixed obstructions are affected by tide, wind-driven surge and heavy rainfall. Always check vertical clearances on charts and verify real-time gauges or observable markers where available. Never assume a clearance is fixed; water level changes can reduce it significantly.

Even with the best charts and electronics, conditions change from storm to storm and season to season. Privately maintained channels may fall into disrepair, and hazards don’t always appear on official publications immediately. Be prudent: update your charts, verify depths with your sounder, use local knowledge where possible, and trust your eyes, ears and the feel of the boat.

This article originally appeared in the September 2020 issue.
